Exporting maps

Export a map from a device to share it with other devices.

Important: You can only export a map created using the VIVE Location-Based Software Suite (LBSS). To learn how to create a map, go to Creating a map using VIVE Manager or Creating a map without VIVE Manager.

In VIVE Business+, go to Manage devices > Registered.
Click the device where the map you want to export is located.

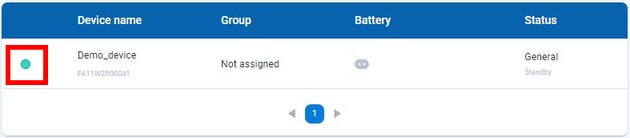

Note: Make sure the device is active (green circle).
In the Device details page, scroll down to Map, and then click Export.

Note: If you’ve just created your play area boundary, you need to suspend (go to sleep mode), and then wake up the device before exporting the map.
The map is exported to the cloud.
Enter the map name description, and then click Apply.
Tip: We recommend entering a detailed name and description to distinguish between different maps.

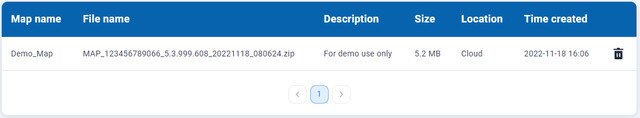

In the VIVE Business+ left panel, go to Storage > Map to see the map details.

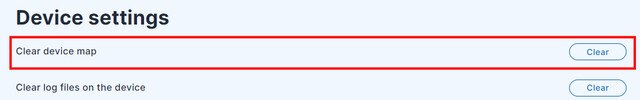

To delete the map on the device, scroll down to Device settings, and then click Clear next to Clear device map.
