Creating a group and assigning a configuration package
Assign a configuration package to a group so that it can easily be pushed to a group of headsets. Here's how to create a group and assign a configuration package to it:

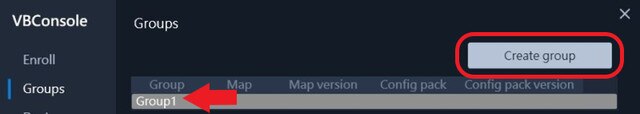

VBC, go to
Groups and click
A default name will be applied to the new group.
- Double-click the group to view the group details.

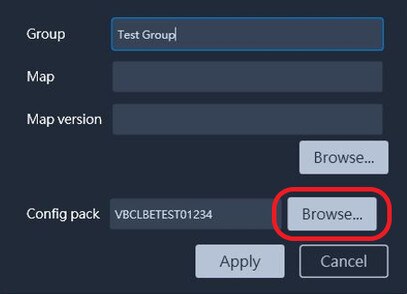

Config pack, click
Browse, and then select a configuration package.
Note: Skip this step if you've already deployed an LBE license through the DMS.Tip: You can edit the group name from this dialog box.
Apply to save the changes.

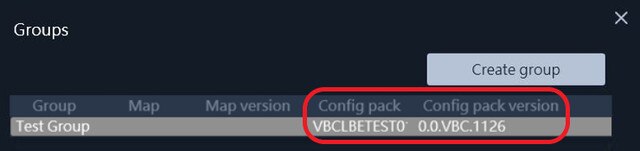

The details of the configuration package will appear next to the group you created.
Tip: Right-click a group to access additional group options such as group settings, duplication, and deletion.
