Pairing VR controllers with a headset
You can pair two VR controllers with a headset when using
Simulator VR Mode.
The left controller will be used as the anchor controller in your VR simulator.
- Power on the headset and connect it to your PC.
-
In
VBC, go to
Device Settings and click
Pair controllers.
-

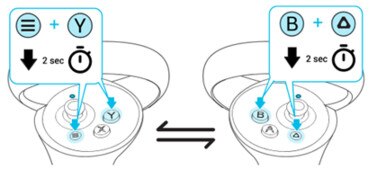

Press and hold the menu and
Y buttons on the left controller, and the VIVE and
B buttons on the right controller for about 2 seconds to initiate pairing mode. The controller LEDs will flash blue.
When the controllers have been paired successfully, the LEDs will turn solid green.
