Enrolling and setting up VIVE Focus 3 in VMware AirWatch via a QR code

You can create and use a QR code to automatically set up Wi‍-Fi, install the VMware AirWatch® agent from a specified URL, and enroll VIVE Focus 3.

Here's how.

Important: To enroll headsets using the QR code for the configuration outlined in this topic, make sure your headsets have been updated to software version 5.0.999.864 (FOTA 5.10) or later.
  1. On your computer's web browser, go to a website that can generate QR codes.

    For example: https://www.the-qrcode-generator.com/

  2. Configure your QR code with the following data:
    • Headset setup:
      Parameter Description

      wifi

      Wi‍-Fi configuration. For details, see the "‍Wi‍-Fi settings"‍ table.

      url

      Download link for VMware AirWatch

      oobe

      Configuration for specifying what to include in the headset setup process:

      0: Include the complete setup process

      1: Include only room setup and first-time controller setup

      2: Skip the entire headset setup process

      extras

      For details, see the "‍Additional data"‍ table.
      Note:

      The download link for VMware AirWatch is https://getwsone.com/mobileenrollment/airwatchagent.apk. Make sure the URL is accessible before generating your QR code.

    • Wi‍-Fi settings:
      Parameter Description

      T

      Authentication type (for example: WPA2-EAP, WPA)

      S

      Network SSID

      P

      Network password

      I

      Identity

      R

      MAC randomization (true or false)

      Note: MAC randomization is enabled (true) by default.
    • Additional data:

      You can include the following data as needed when automatically enrolling VIVE Focus 3 with the VMware AirWatch agent:

      Parameter Description

      svr

      Server URL

      gid

      Group ID

      un

      Username

      pw

      Password

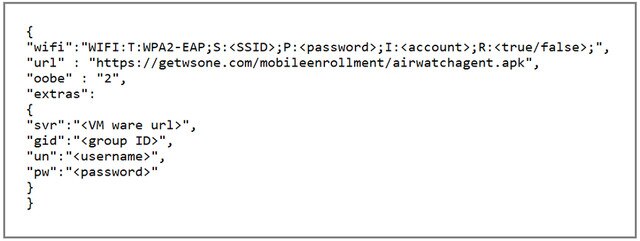

    The following examples show how the data may be entered manually when configuring your QR code.

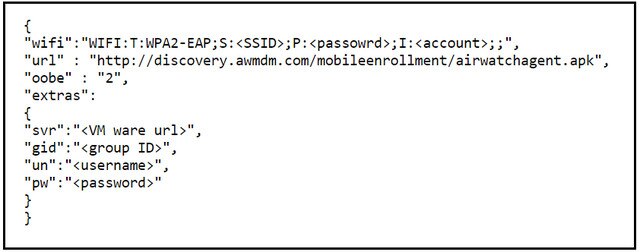

    Wi‍-Fi with WPA2-EAP authentication:

    Click here for an editable version of the above sample.

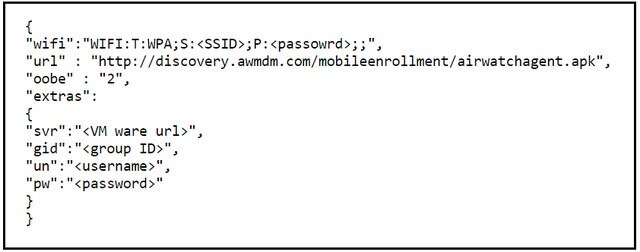

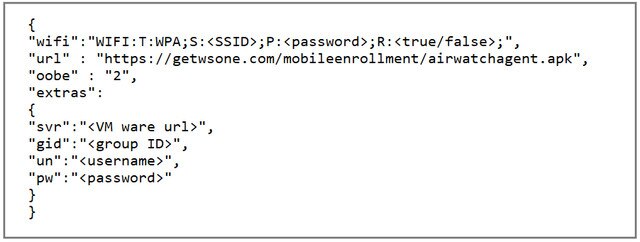

    Wi‍-Fi with WPA authentication:

    Click here for an editable version of the above sample.

  3. Generate your QR code, and then download it onto your computer.
  4. Open the QR code on your computer, and then put on your headset.
  5. Perform a factory reset.

    After the factory reset, VIVE Focus 3 will restart and prompt you to set up the headset.

  6. When the welcome screen appears, press the Headset button three times to enable passthrough. Use the onscreen QR code scanner to scan the QR code displayed on your computer screen.

    The MDM Setup window will appear. The VMware AirWatch agent will then automatically enroll the headset. When enrollment is complete, follow the onscreen instructions to finish setting up the headset.
